World-Class Manufacturing Capabilities
3,000+ m² • 50+ Engineers • 30+ Precision Machines • ISO 9001:2015
3,000+
SQ. METERS FLOOR AREA
50+
ENGINEERS & TECHNICIANS
30+
PRECISION MACHINES
24hr
DFM REVIEW TURNAROUND

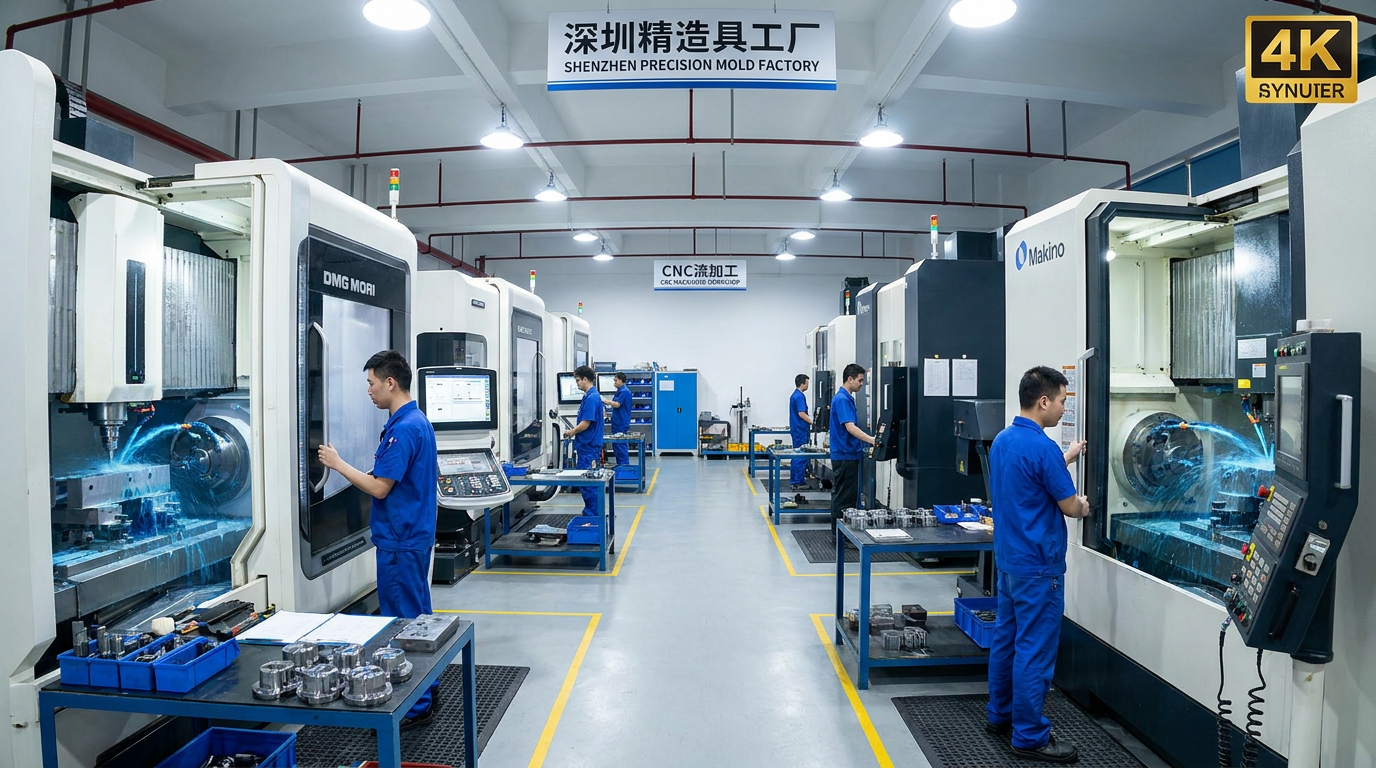

⚙ CNC Machining Centers
Our machining floor operates a full range of CNC equipment handling mold components from rough material removal through micron-level finish machining. All machines are temperature-controlled and regularly calibrated to national standards.
| Equipment | Accuracy |
|---|---|
| 3-Axis CNC 1,200×600×600mm | ±0.005mm |
| 5-Axis CNC Simultaneous 5-axis | ±0.003mm |
| High-Speed Machining 20,000 RPM spindle | ±0.003mm |
| Gantry CNC 3,000×1,500mm table | ±0.008mm |

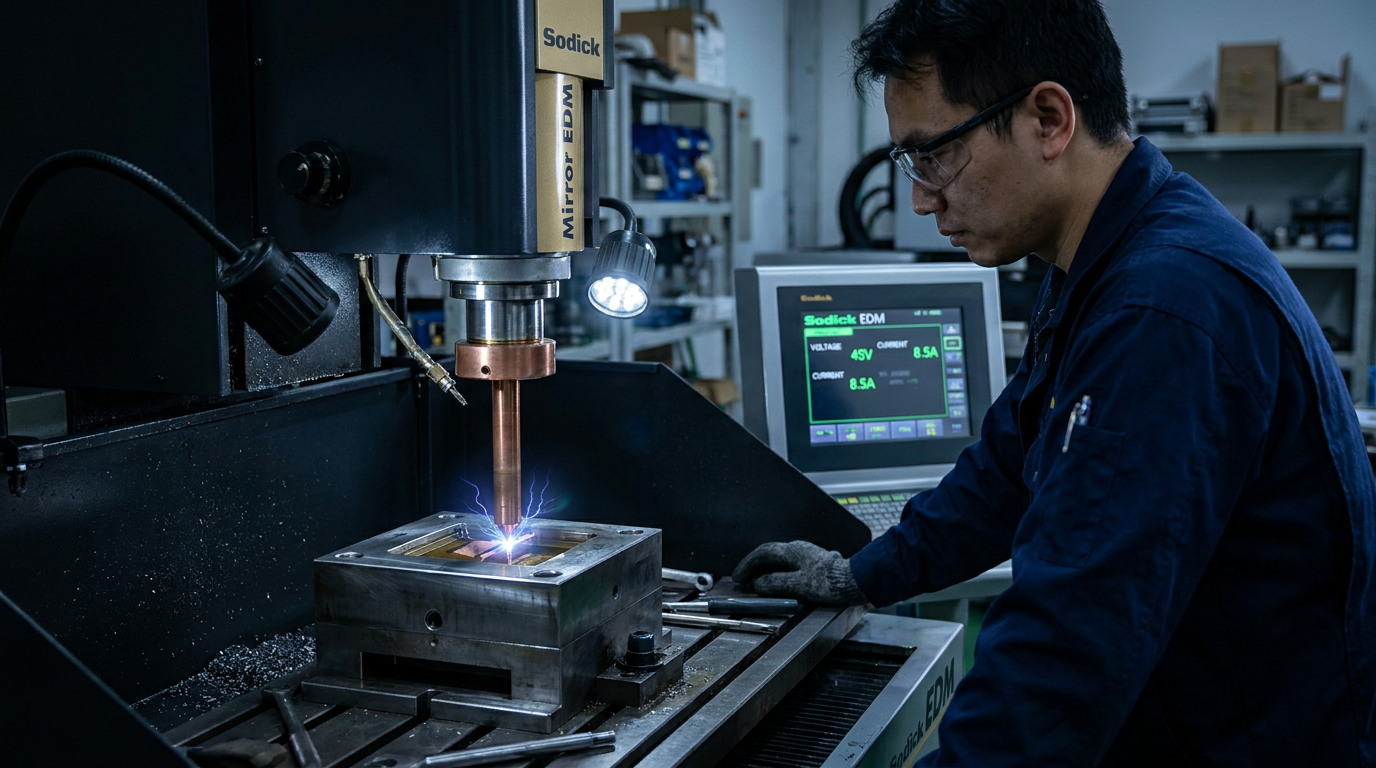

⚡ EDM Machining
Our EDM department handles precision features CNC cannot reach — sharp internal corners, deep ribs, textured surfaces, and hardened insert machining. Performed after heat treatment, preserving final hardness while achieving micron-level accuracy.
| Equipment | Brand | Accuracy |
|---|---|---|
| Mirror EDM | Sodick / Makino | ±0.002mm Ra 0.2μm |
| Wire-Cut EDM | Fanuc / Sodick | ±0.002mm |
| EDM Drill | CNC drill | ø from 0.3mm |
🏭 Injection Molding Machines
In-house injection molding machines give us full control over trial scheduling, process optimization, and rapid modification turnaround — no waiting for third-party facilities.
| Tonnage | Shot Weight | Application |
|---|---|---|
| 50T | 30g | Small precision parts |
| 120T | 120g | Medium consumer parts |
| 250T | 300g | Standard mold trials |
| 500T | 800g | Large structural parts |
| 1,000T | 2,500g | Bumpers, large housings |

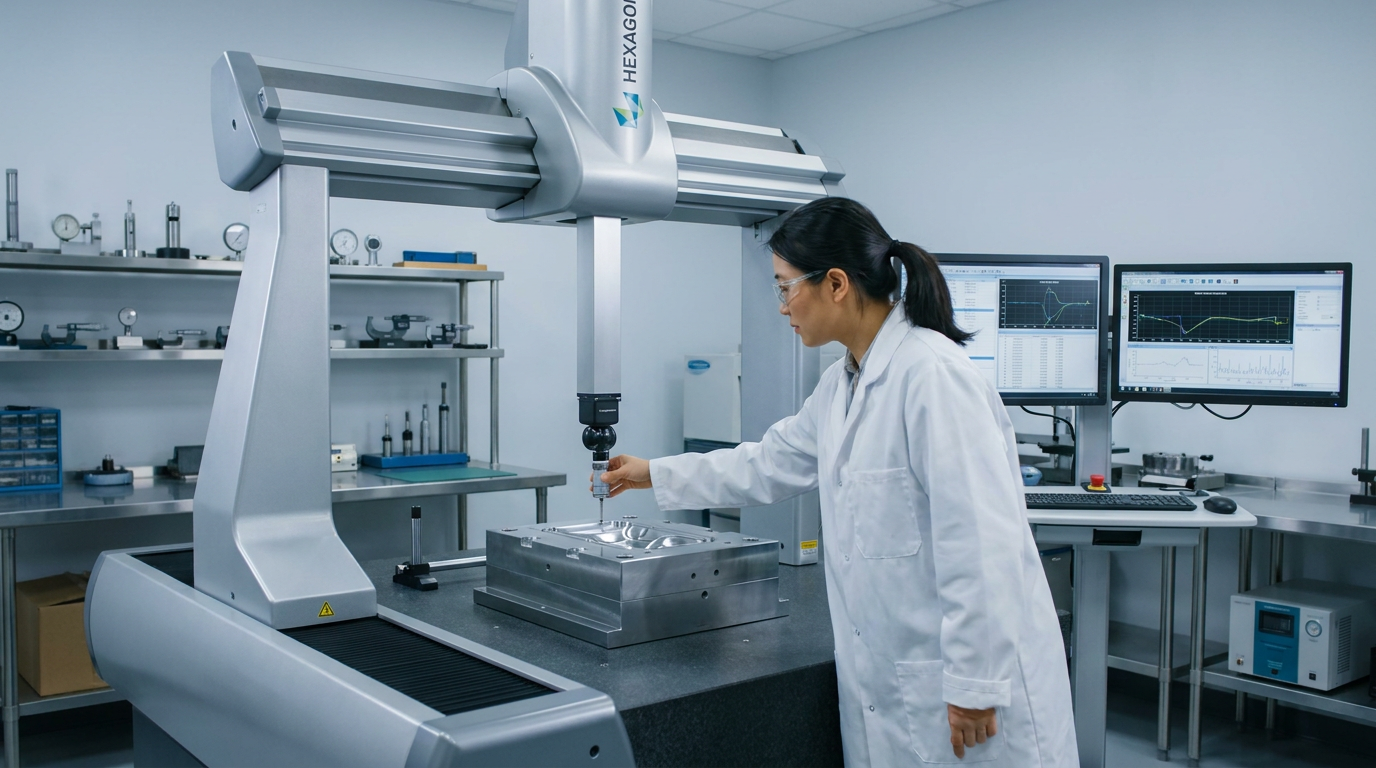

📏 Quality & Metrology
Every mold component is inspected at multiple production stages. Our metrology lab is maintained at 20°C ±1°C for traceable, repeatable measurement results.
| Equipment | Brand | Accuracy |
|---|---|---|
| CMM Bridge | Hexagon / Zeiss | ±0.001mm |
| Optical Projector | Mitutoyo | ±0.001mm |
| Surface Roughness | Mitutoyo SJ-210 | Ra ±5% |
| Hardness Tester | TIME | ±0.5 HRC |
| Digital Micrometer | Mitutoyo | ±0.001mm |
Our 9-Stage Manufacturing Workflow
Every mold follows a structured, stage-gated production process with inspection checkpoints at each transition.
STAGE 01
DFM Analysis & Mold Design
DFM report + 3D mold model, customer approval
STAGE 02
Steel Procurement & IQC
Certified steel with material certificate
STAGE 03
Rough CNC Milling
Cavity/core roughed to 0.3–0.5mm stock
STAGE 04
Heat Treatment
Hardened to target HRC per steel specification
STAGE 05
5-Axis Finish Milling & EDM
Final geometry ±0.005mm; EDM details ±0.002mm
STAGE 06
Grinding & CMM Inspection
Parting surfaces flat to 0.002mm; CMM report issued
STAGE 07
Fitting, Polishing & Assembly
Fully assembled; cooling circuit pressure-tested
STAGE 08
Mold Trial (T1–T3)
Production-quality parts; dimensional report
STAGE 09
FAI & Documentation
CMM FAI report + material certs + 3D files + sample parts
Ready to Start Your Mold Project?
Send us your 3D file or drawing and our engineering team will provide a free DFM review and quotation within 24 hours.
