CMM Inspection in Mold Manufacturing: How Coordinate Measuring Machines Verify Mold Accuracy

---

Coordinate Measuring Machines (CMMs) are the backbone of precision quality control in mold manufacturing. Unlike manual measurement tools — calipers, micrometers, height gauges — CMMs capture true 3D geometry in a controlled environment, generating traceable, repeatable measurement data that validates dimensional compliance against engineering drawings. For injection molds producing parts with tolerances of ±0.01–0.05mm, CMM inspection is not optional — it is the only method capable of confirming that the mold will produce conforming parts.

Further Reading

For neutral technical background, see CMM inspection background.

---

1. How CMM Works

A CMM uses a precision probe mounted on a rigid bridge or gantry structure to touch specific points on a workpiece surface. Each touch records an X, Y, Z coordinate in 3D space. Software (PC-DMIS, Calypso, Metrolog) compares the measured point cloud against the nominal CAD model or 2D drawing dimensions, calculating deviations, form errors, and GD&T (Geometric Dimensioning and Tolerancing) results.

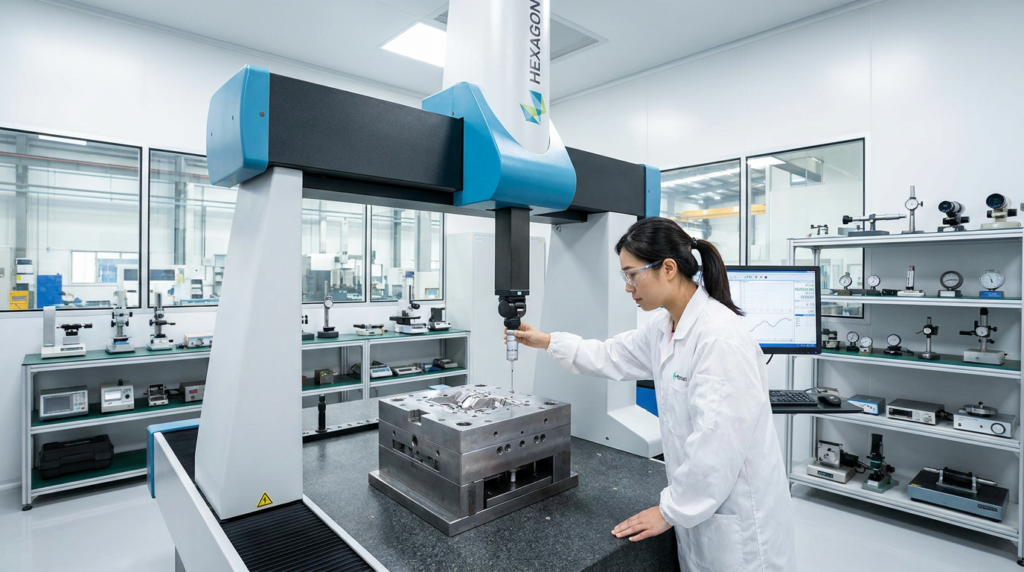

• Bridge CMM — The most common type for mold inspection. A horizontal beam (bridge) moves over a granite surface plate. Hexagon and Zeiss are the leading manufacturers. Measuring volume from 500×500mm to 2,000×4,000mm for large molds
• Tactile probing — A ruby ball probe contacts the surface at programmed points. Probe diameter 0.5–5mm. Each contact records one 3D coordinate. Measurement uncertainty: ±0.001–0.003mm depending on machine class
• Scanning probes — Continuously slide along surfaces, capturing thousands of points per second. Used for freeform cavity surfaces, Class A automotive panels, and complex contoured features
• Non-contact optical measurement — Laser scanners or structured light systems capture complete surface point clouds without contact. Used for delicate surfaces, large panels, and rapid first-pass inspection

---

2. CMM Applications in Mold Manufacturing

Inspection Stage	What Is Measured	Frequency
Steel incoming inspection (IQC)	Block dimensions, flatness, hardness verification	Every incoming steel batch
Cavity/core after CNC machining	Cavity dimensions vs nominal CAD, position of features	After each major machining stage
After EDM finishing	Fine feature dimensions, EDM depth, surface position	After each EDM operation
Mold assembly check	Cavity-to-core alignment, parting surface flatness, guide pin positions	Before first trial
First Article Inspection (FAI)	100% of drawing dimensions on 5–10 sample parts	T1 and after each modification
Production sampling (SPC)	Critical dimensions on statistical sample	Every production run

---

3. Key CMM Measurements for Injection Molds

• Cavity depth and width — Core dimensions that directly determine part wall thickness and external dimensions. Measured to ±0.005mm; deviation from nominal is adjusted in cavity during fitting
• Core pin position — Position of ejector pin holes, core pins, and insert bores. Position tolerance typically ±0.01–0.02mm. Mislocation causes ejection interference or part mark position deviation
• Parting surface flatness — The mating surfaces of cavity and core plates must be flat within 0.002–0.005mm to prevent flash. CMM measures flatness across the full parting surface area
• Guide pin and bushing bore position — Lateral position accuracy of guide system determines cavity-to-core alignment. Position tolerance: ±0.005mm. Misalignment causes systematic mismatch (witness line) on every part
• Cooling channel position — Distance from cooling channel centerline to cavity surface. CMM verifies channel position from external reference faces; endoscope inspection verifies internal surface condition

---

4. Reading a CMM Report

A CMM inspection report lists measured dimensions against nominal values with deviations and pass/fail status. Key elements to verify:

• Datum reference frame — Confirm the report uses the same datums (A, B, C) as defined on the 2D drawing. A report using different datums cannot be used to verify drawing compliance
• Deviation column — The difference between measured and nominal. Positive deviation = oversize; negative = undersize. For mold cavities, undersize is generally preferred (steel-safe) as material can be removed but not added easily
• Tolerance column — The allowed deviation band from the drawing. Any deviation outside this band is a non-conformance requiring rework
• Form errors (flatness, roundness, cylindricity) — GD&T form tolerances are independent of size tolerances. A feature can be in-size but still fail its flatness requirement
• Temperature conditions — Report should state measurement temperature. Any deviation from 20°C requires thermal correction factors, especially for large mold bases

---

5. CMM vs Other Inspection Methods

Method	Accuracy	Speed	Best For	Limitation
CMM (tactile)	±0.001–0.003mm	Medium	3D features, GD&T, FAI reports	Slow for large surface areas
CMM (scanning)	±0.003–0.010mm	Fast	Freeform surfaces, Class A panels	Lower point accuracy than tactile
Optical projector	±0.001–0.005mm	Fast	2D profiles, connector pins, cross-sections	2D only, limited to part cross-section
Micrometer/caliper	±0.01–0.02mm	Very fast	Simple linear dimensions, incoming QC	Not suitable for 3D features or GD&T
Surface roughness tester	Ra ±5%	Fast	Surface finish verification	Cannot measure dimensional features

---

Conclusion

CMM inspection is the definitive method for verifying injection mold dimensional compliance. BuildMold operates Hexagon and Zeiss bridge CMMs in a temperature-controlled metrology lab, performing full FAI inspection on every mold before shipment. Every mold is accompanied by a complete CMM inspection report with deviation data for all drawing dimensions — giving customers objective, traceable evidence of dimensional conformance before the mold enters production.
