📌 Key Takeaways
- DFM analysis performed before mold build catches an average of 8–12 design issues per part — each one that slips through costs 10× more to fix after T1
- Draft angle is the most common DFM finding: 80% of parts submitted without DFM have at least one zero-draft surface that will cause ejection problems
- Wall thickness uniformity within ±0.3mm is the single most impactful design rule for eliminating sink marks and warpage before mold build
- Gate location should be proposed in the DFM report, not left to the mold maker — gate position determines weld line location, fill balance, and cosmetic quality
- A written DFM report with screenshots and specific recommendations is worth 10× more than verbal feedback — it creates accountability and a design revision record
Design for Manufacturability (DFM) analysis is the most cost-effective investment in any injection molding project. A systematic DFM review identifies design features that will cause molding defects, excessive tool complexity, or premature mold failure — before any steel is cut. This guide covers how professional DFM analysis works, the key checkpoints every engineer should understand, and how to use DFM findings to improve part design before committing to tooling.
1. What DFM Analysis Covers
A comprehensive DFM report examines every aspect of the part design that affects moldability, tool life, part quality, and production efficiency. At BuildMold, our DFM analysis covers eight core areas:
| DFM Area | What Is Checked | Common Finding |
|---|---|---|
| Draft angles | All vertical walls checked for minimum draft | 0° draft on textured or deep walls |
| Wall thickness | Uniformity across entire part; thick/thin transitions | Bosses 2× wall thickness, creating sink marks |
| Undercuts | Features requiring sliders, lifters, or collapsible cores | Snap hooks requiring side actions |
| Gate location | Proposed gate type, size, and position | Customer-preferred gate creates weld line on Class A surface |
| Parting line | P/L location, stepped sections, shut-off angles | P/L crossing cosmetic surface |
| Radii & fillets | Internal corners — sharp corners cause stress concentration and EDM cost | Internal R0 requires EDM; minimum R0.5mm recommended |
| Ejection | Ejector pin layout feasibility; adequate push area | Insufficient draft on deep core; no valid ejector locations |
| Ribs & bosses | Rib thickness (60% rule), rib height, boss wall thickness | Ribs 80% of wall = sink marks on opposite face |
2. Draft Angle Analysis
Draft angle is the taper applied to all vertical walls to allow the part to release from the mold without dragging, scratching, or sticking. It is the most frequently found DFM issue — and one of the easiest to correct at design stage but most expensive to fix after mold build.
- Minimum draft for smooth surfaces — 0.5°–1° per side for SPI B or C finish. 0.5° is acceptable for short draws (<25mm); 1° is safer for all general applications
- Textured surfaces — EDM VDI texture requires 1° draft per 0.025mm of texture depth. VDI 30 (Ra 3.2μm) requires minimum 3°; VDI 45 requires 5°–7°
- Zero draft surfaces — Cannot be ejected without drag marks or part damage. Every zero-draft surface identified in DFM must be either corrected or explicitly accepted by the customer with understanding of consequences
- Negative draft — Draft angle in the wrong direction creates an undercut that prevents ejection entirely. Requires slider, lifter, or part redesign
- Core draft vs cavity draft — Core (inside) surfaces require more draft than cavity (outside) surfaces because the part shrinks onto the core during cooling, increasing ejection friction
3. Wall Thickness Analysis
Non-uniform wall thickness is the root cause of the three most common injection molding defects: sink marks, warpage, and weld line strength reduction. The goal of wall thickness DFM is not to eliminate all variation, but to minimize abrupt transitions and thick isolated sections.
| Rule | Specification | Consequence of Violation |
|---|---|---|
| Nominal wall thickness | 1.5–3.5mm for most thermoplastics | Outside range: filling or cooling problems |
| Wall uniformity | Variation within ±25% of nominal | Sink marks on thick sections; warpage |
| Rib thickness | 60–65% of nominal wall | >70%: sink marks visible on opposite face |
| Boss wall thickness | 60% of nominal wall | >75%: sink mark directly above boss |
| Thickness transition | Max 3:1 ratio; gradual taper preferred | Abrupt steps: weld lines and stress concentration |
| Minimum wall | ≥0.8mm for standard materials | Thinner: fill incomplete; tool fragile |
4. Gate Location Recommendations
Gate location is one of the highest-impact decisions in mold design, yet it is often left entirely to the mold maker. A DFM report should include a gate location recommendation with reasoning — because gate position determines:
- Weld line position — Weld lines form where two flow fronts meet. Gate location determines where those fronts meet. DFM should place weld lines in low-stress, non-cosmetic areas
- Fill balance — Gate at the geometric center of the flow path minimizes pressure drop and fill time. Off-center gating creates pressure imbalance and differential shrinkage
- Cosmetic surface protection — Gate marks (vestige) are visible and must be hidden in non-cosmetic areas or designed to accept the mark (sub-gate, valve gate)
- Fiber orientation (GF materials) — Gate location determines the direction fibers align, which affects both strength anisotropy and differential shrinkage-induced warpage
- Air trap locations — Fill direction determines where air is pushed to last. Gate must allow air to escape through vents — not trap it in pockets or ribs
5. Undercut Identification
Undercuts are features that prevent the part from being released from the mold in the direction of mold opening without additional mechanism. Every undercut identified in DFM adds cost (slider or lifter) and complexity. DFM should evaluate whether each undercut is essential or can be redesigned.
| Undercut Type | Solution | Cost Impact |
|---|---|---|
| External side undercut | Slider (side action) | Add \,500–\,000 per slider |
| Internal undercut | Lifter or internal slider | Add \,000–\,000 per lifter |
| Thread or snap hook | Collapsible core or hand-loaded insert | Add \,000–\,000 |
| Shallow undercut (<0.5mm) | Flexible material allows forced ejection | No cost if material permits |
6. How BuildMold Delivers DFM Reports
Our DFM process begins within 24 hours of receiving a 3D file and 2D drawing. The report is delivered as a PDF with annotated screenshots for every finding, including:

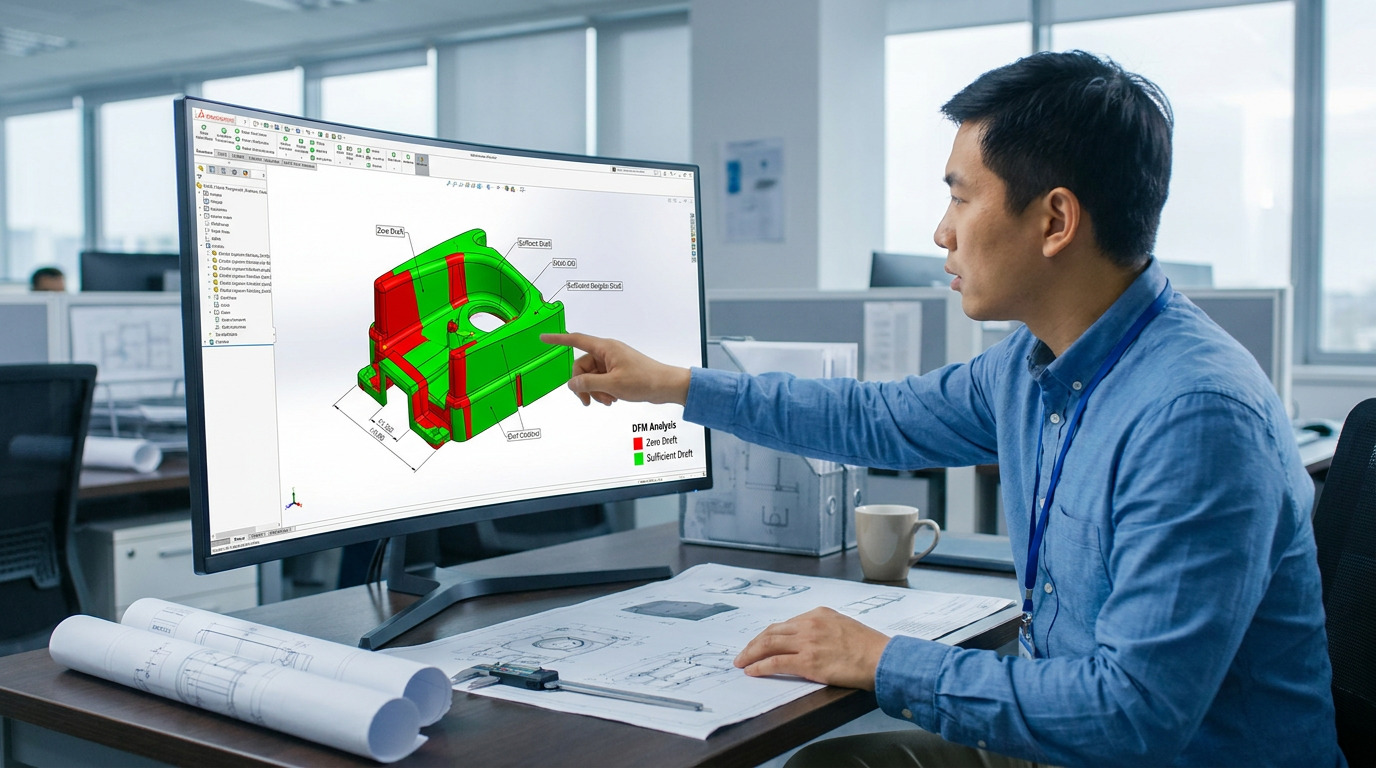

- Color-coded draft angle analysis (green = sufficient draft; red = insufficient or zero draft)
- Wall thickness heat map showing thin and thick zones
- Proposed parting line, gate location, and ejector layout
- List of all undercuts with recommended solutions and cost implications
- Specific recommendations for each finding, with redesign options where applicable
- Estimated impact on mold cost and lead time for each recommended change
The DFM report is a collaborative document, not a rejection. Our goal is to help customers make informed decisions before committing to tooling — whether that means redesigning the part, accepting a known limitation, or choosing a different manufacturing approach.
