Injection Mold Manufacturing: A Technical Guide to Process, Materials & Quality Control

Plastic injection molding is one of the most widely used manufacturing processes for producing high-volume, high-precision plastic components. At its core, the quality and performance of every molded part depend directly on the design and craftsmanship of the injection mold itself. This article provides a technical overview of key considerations in injection mold manufacturing — from material selection and DFM analysis to cooling system design and mold trial validation.

---

1. Mold Steel Selection

Choosing the right steel grade is the foundation of a durable, high-performance mold. The selection depends on production volume, part material, and surface finish requirements:

Steel Grade	Hardness	Best For	Typical Shot Life
P20 (1.2311)	28–32 HRC	General-purpose, medium volume	< 500,000
718H (1.2738)	33–38 HRC	Large mold bases, thick sections	500,000–800,000
NAK80	37–43 HRC	Mirror finish, optical & cosmetic parts	500,000+
H13 (1.2344)	48–52 HRC	High-temp resins (PC, PA+GF), high volume	1,000,000+
S136 (1.2083)	48–52 HRC	Corrosive resins, medical, food-contact	1,000,000+

---

2. Design for Manufacturability (DFM) Analysis

Before cutting steel, a thorough DFM review identifies potential molding defects and reduces costly design iterations. Key DFM checkpoints include:

• Draft angle — A minimum draft of 0.5°–1° per side is required on all vertical walls. Textured surfaces typically require 3°–5° to allow clean part ejection without drag marks.
• Wall thickness uniformity — Abrupt thickness transitions cause sink marks and warpage. Recommended wall thickness for most thermoplastics is 1.5–3.5mm, with transitions not exceeding a 3:1 ratio.
• Undercuts — Internal or external undercuts require lifters, sliders, or collapsible cores, adding complexity and cost. DFM aims to minimize or redesign these features where possible.
• Gate location — Gate position affects fill pattern, weld line placement, and cosmetic appearance. For multi-cavity molds, balanced gating is essential to ensure uniform fill across all cavities.
• Parting line — The parting line must be strategically placed to avoid witness lines on critical surfaces and to facilitate venting and ejection.

---

3. Cavity & Core Machining

Dimensional accuracy in cavity and core machining directly determines part dimensional compliance. BuildMold’s machining workflow follows a structured sequence:

Process	Equipment	Tolerance	Application
Rough CNC milling	3-axis CNC	±0.05mm	Bulk material removal
Finish milling	5-axis CNC	±0.005mm	Complex contoured surfaces
Mirror EDM	Sodick / Makino	±0.002mm, Ra0.2μm	Fine details, sharp corners
Wire-cut EDM	Slow-wire machine	±0.002mm	Inserts, sliders, lifters
Surface grinding	Surface grinder	0.002mm/300mm	Parting surface flatness

---

4. Cooling System Design

The cooling system accounts for approximately 70% of the injection molding cycle time. An optimized cooling circuit directly improves productivity and part quality:

• Cooling channel diameter — Standard diameter is 8–12mm, positioned 1.5x diameter from the cavity surface for uniform heat extraction.
• Conformal cooling — For complex geometries, conformal cooling channels follow the part contour, reducing hot spots and cycle time by 20–40%.
• Baffle and bubbler inserts — Used in deep cores and ribs where straight-through channels are not feasible.
• Mold temperature control — Water temperature is typically maintained at 20–60°C for standard resins; higher temperatures (80–120°C) are used for crystalline materials like POM and PA to improve surface finish and reduce internal stress.

---

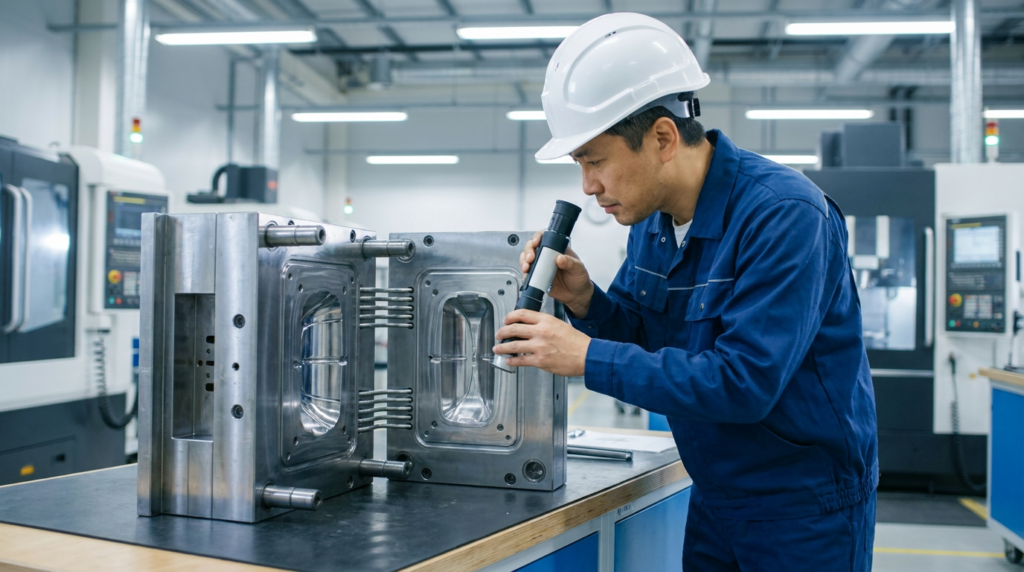

5. Mold Trial & Validation

A structured mold trial process ensures the mold performs to specification before mass production:

• T1 trial (first shot) — Validates basic mold function: filling, venting, ejection, and cooling. Focus is on identifying flash, short shots, burn marks, and sink marks.
• T2 trial — Process parameters are optimized (injection speed, pressure, temperature, cooling time). Dimensional measurement of critical features against the 2D drawing.
• T3 / FAI (First Article Inspection) — Full dimensional report using CMM (±0.001mm accuracy). Part appearance, gate vestige, and weld line position evaluated against customer specifications.
• Mold acceptance — Mold is accepted when parts consistently meet dimensional tolerances, surface finish requirements, and functional performance criteria across a minimum sample run (typically 30–100 shots).

---

Conclusion

High-quality injection mold manufacturing is a multi-disciplinary engineering process that requires precision at every stage — from DFM analysis and steel selection to machining, cooling design, and trial validation. At BuildMold, each mold is engineered with production efficiency and long-term durability in mind, backed by ISO 9001:2015 quality management and a team of 50+ experienced tooling engineers.
