📌 Key Takeaways
- Thin-wall injection molding is defined as parts with a wall thickness below 1.5mm or a flow length-to-thickness (L/T) ratio above 100:1
- Thin-wall parts require injection speeds 3–5× faster than standard molding — fill time must be under 0.3–0.5 seconds before the melt freezes in the cavity
- Clamp tonnage requirements for thin-wall parts are 30–50% higher per projected area than standard parts due to higher injection pressures required
- Cooling time is dramatically reduced in thin-wall molding — 0.8mm wall parts cool in 1–2 seconds vs 8–12 seconds for 3mm walls
- Ejection is more challenging in thin-wall molds: air assist ejection and stripper plate systems are preferred over ejector pins to prevent part distortion

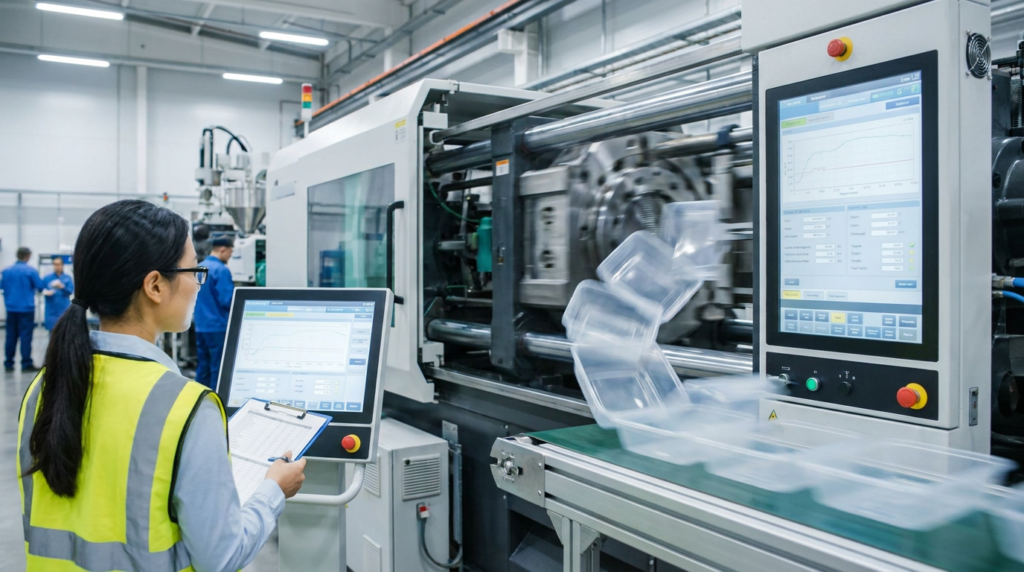

Thin-wall injection molding pushes the boundaries of conventional injection molding, producing parts with wall thicknesses below 1.5mm — sometimes as thin as 0.3mm in precision applications. Used extensively for packaging (food containers, lids, cups), consumer electronics (phone cases, laptop bezels), and medical disposables, thin-wall molding demands specialized machine capabilities, mold engineering, and material selection that differ significantly from standard injection molding practice.
Further Reading
For neutral technical background, see injection molding background.
1. Definition & Industry Standards
| Classification | Wall Thickness | L/T Ratio | Cycle Time | Industry |
|---|---|---|---|---|
| Standard molding | 1.5–4.0mm | <50:1 | 15–60 sec | General industrial |
| Thin-wall | 0.8–1.5mm | 50–100:1 | 5–15 sec | Electronics, automotive |
| Very thin-wall | 0.4–0.8mm | 100–200:1 | 2–5 sec | Packaging, medical |
| Ultra thin-wall | <0.4mm | >200:1 | <2 sec | Micro-medical, precision optics |
2. Machine Requirements
- High injection speed — 300–1,000mm/s injection velocity required (vs. 50–150mm/s for standard molding). The melt must fill the cavity before the thin wall freezes off
- High injection pressure — 1,500–2,500 bar vs. 800–1,200 bar for standard molding. Requires heavy-duty injection unit and reinforced barrel
- Clamp force — 0.5–0.7 tonnes per cm² of projected area for thin-wall vs. 0.3–0.5 tonnes for standard. Undersized clamp causes flash
- Closed-loop control — Position-controlled injection with millisecond-resolution velocity profiling is essential. Simple pressure/time-based machines cannot reliably fill thin-wall parts
- Rapid response accumulator — Hydraulic accumulator provides instantaneous high-flow delivery for the first 0.1–0.3 seconds of fill — critical for thin walls where fill time is under 0.5 seconds
3. Mold Design for Thin-Wall Parts
- Gate sizing and quantity — Multiple gates reduce flow length and fill pressure. Edge gates or fan gates distribute melt across the full wall width. Hot runner valve gates provide precise fill control
- Runner sizing — Thin-wall molds use larger runners relative to the cavity to minimize pressure drop in the delivery system. Hot runners eliminate runner freeze-off issues entirely
- Venting — High injection speeds trap air faster than standard molding. Vent depth 0.015–0.025mm; vent at every flow end location. Vacuum venting for ultra-thin applications
- Cooling — Conformal cooling or high-conductivity beryllium copper inserts at critical heat concentration areas. Target mold surface temperature uniformity within ±3°C
- Mold rigidity — Thin-wall molds must withstand higher clamping and injection forces without deflection. Use H13 or S7 steel for core and cavity; add support pillars behind cavity plates
4. Material Selection for Thin-Wall
| Material | MFI Range (g/10min) | Min Wall (mm) | Key Property |
|---|---|---|---|
| PP (thin-wall grade) | 30–60 | 0.5 | Excellent flow, low cost, flexible |
| PE (HDPE/LLDPE) | 20–50 | 0.5 | Food-safe, impact resistant |
| ABS (HF grade) | 15–40 | 0.6 | Good aesthetics, moderate flow |
| PC (LV grade) | 15–30 | 0.8 | Optical clarity, impact strength |
| PA66-GF15 | 20–40 | 0.6 | Structural thin-wall, heat resistance |
5. Common Defects & Solutions
| Defect | Root Cause | Solution |
|---|---|---|
| Short shot | Melt freezes before fill complete | Increase injection speed; raise melt/mold temp; add gates |
| Flash | Excessive injection pressure or speed | Balance fill; optimize velocity profile; check clamp tonnage |
| Warpage | Non-uniform cooling; fiber orientation | Balance cooling; add ribs; optimize gate location |
| Sink marks | Wall thickness variation; insufficient pack | Uniform wall design; increase pack pressure; gate at thick section |
| Burn marks | Trapped gas at flow end | Add vents at last-fill areas; reduce injection speed at fill end |
Thin-wall injection molding requires the right combination of specialized machine, optimized mold design, and appropriate material grade. BuildMold designs thin-wall molds for packaging, consumer electronics, and medical applications, with in-house mold flow simulation to validate fill, cooling, and warpage performance before steel is cut.
